Tools for Information Literacy ⑨ Document objects
Exercises to practice some of style creation and style modification tools
Create a new style
This is akin to creating a new style in a CSS stylesheet
Style formatting is akin to changing a style definition in a stylesheet;
Text formatting is akin to doing an inline style declaration on a particular object.
Our document is currently mostly in the Normal style.
We do not want to mess with the Normal style, but will first create a new style based on it.

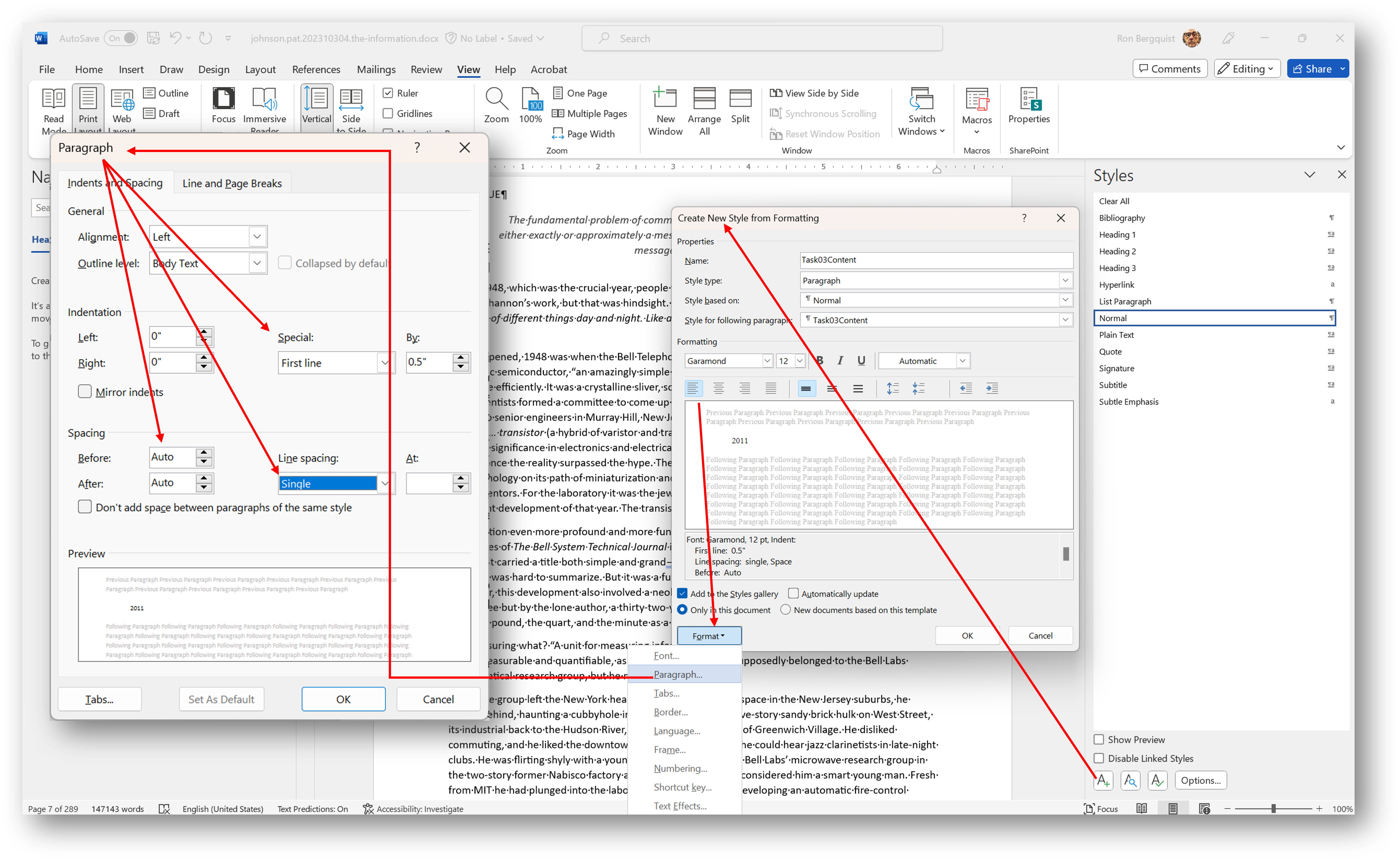

We want to create a new style called Task03Content
- based on the Normal style
- with a serif font (choose one of the ten mentioned at https://www.lifewire.com/classic-serif-fonts-print-projects-1077407)
- 12 points
- auto spacing before and after
- double line spacing (the image below shows single line spacing, but the Guidelines call for double line spacing)
- special first line indentation of .5 inches
This will be a style created for use in this document.
You will note that we decided to use the Garamond
typeface as the font of choice for this style.
There are reasons.
Garamond is a beautiful typeface with an air of informality which looks good in a wide range of applications.
It works particularly well in books and lengthy text settings.
Microsoft Typography
Since the document is now formatted with most of the text in the Normal style,
we need to find all the instances of the Normal style,
so we can change them to the new style we just created.

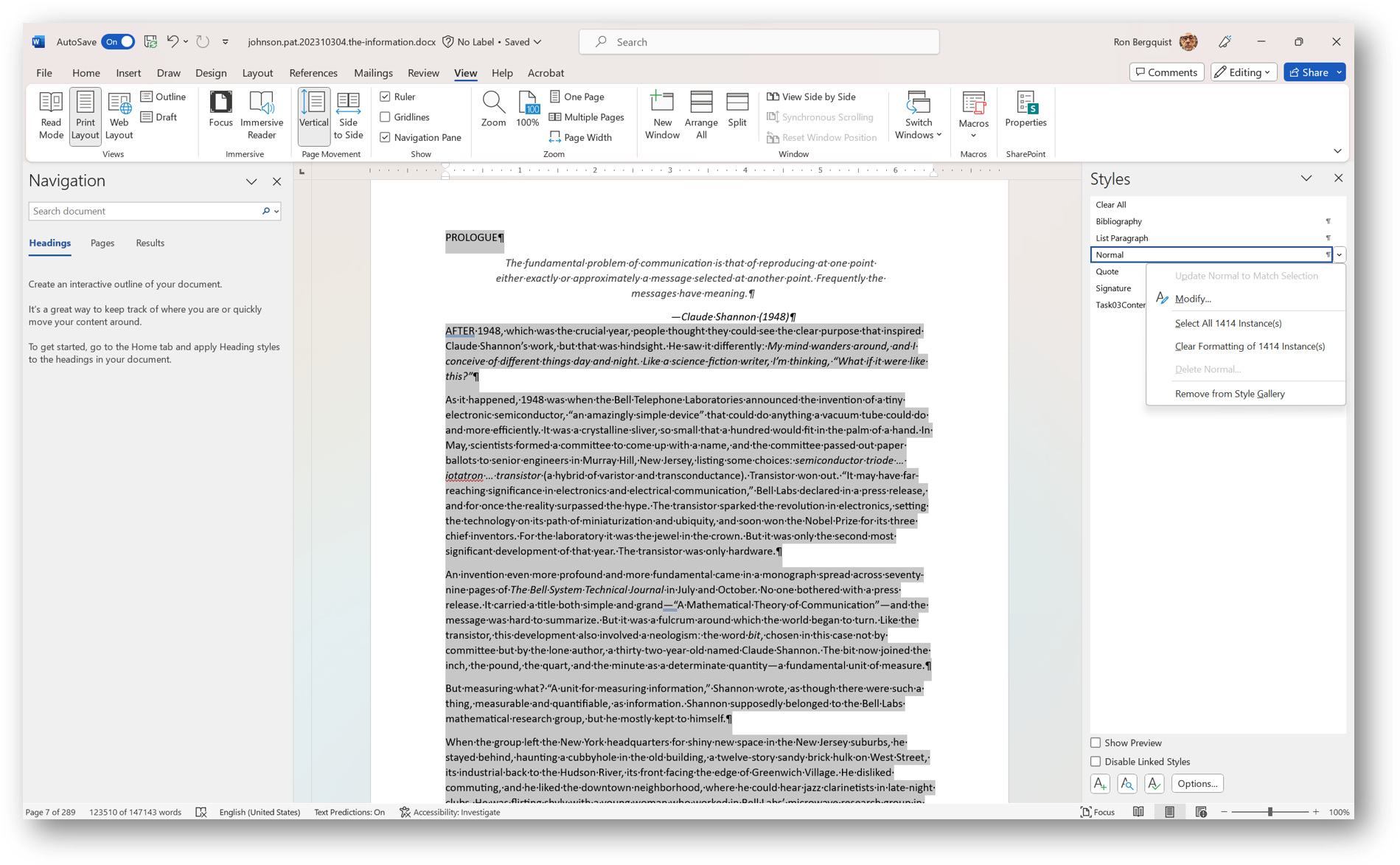

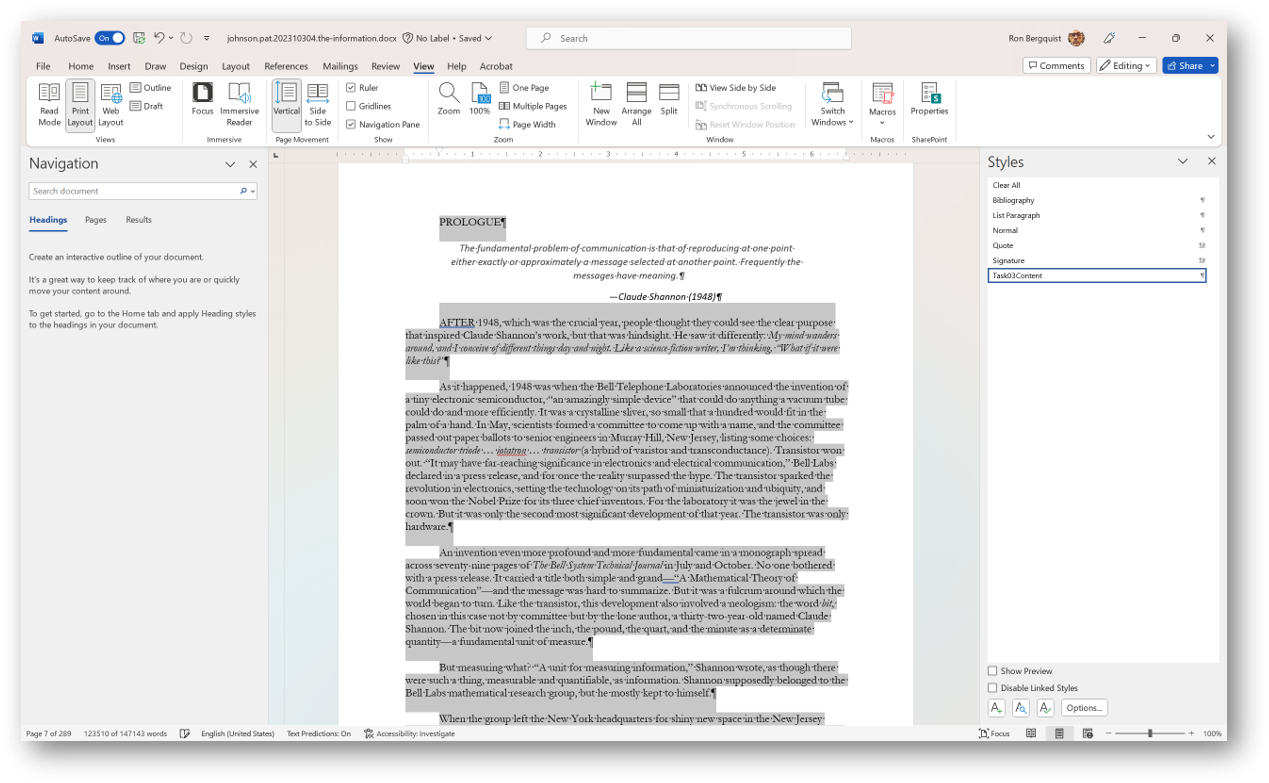

Using the Styles sidebar, select all the instances of the Normal style so that you can modify the style.
It will take a while as there are 1400+ instances of this type of style in the document.
This exercise has allowed us to modify our Style Sheet
(analogous to modifying a CSS style sheet)
so that each time we use the Task03Content style,
we will have the indentation we want and the correct spacing between paragraphs,
as well as the desired typeface and size.

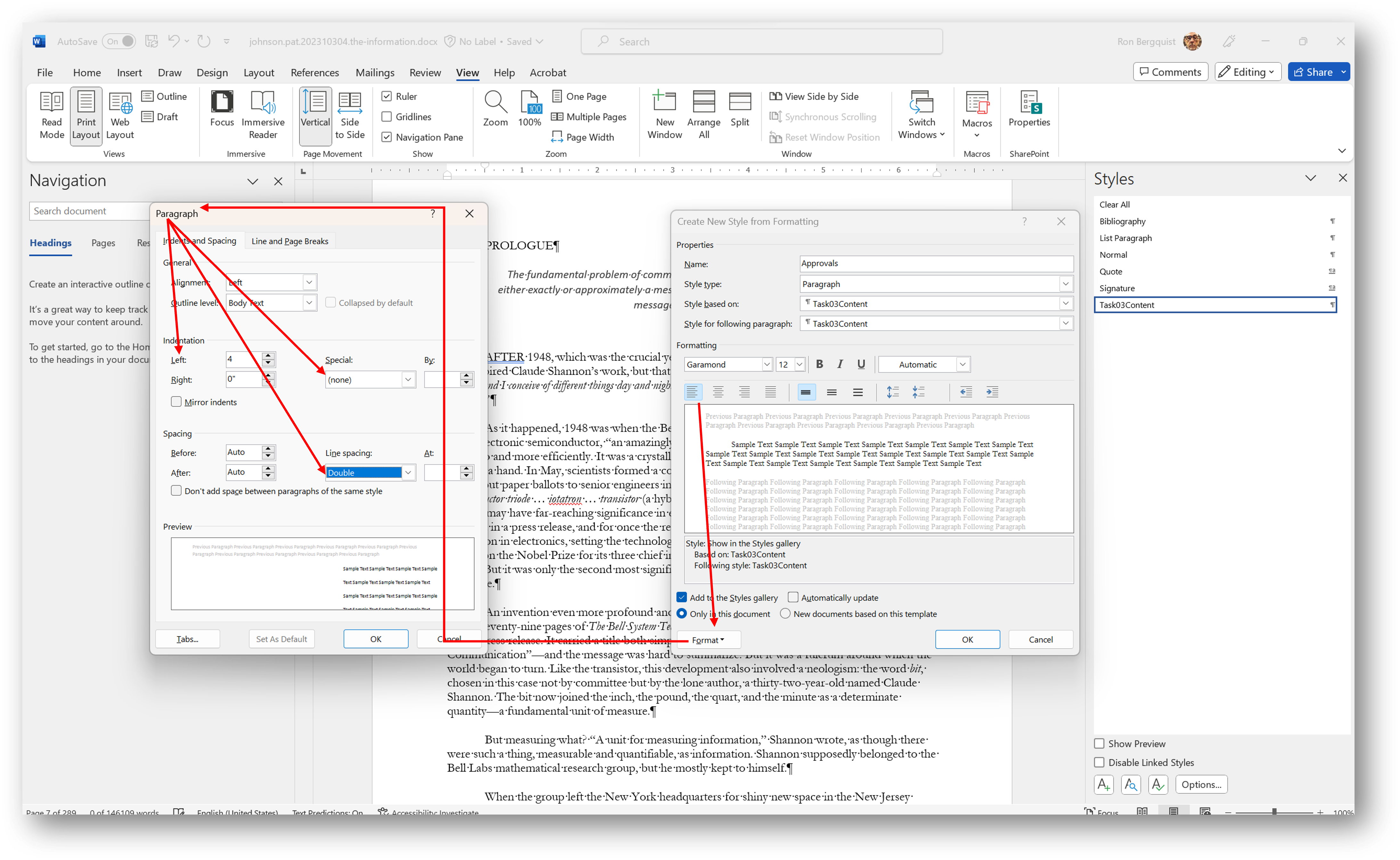

We want to create a second new style called Approvals
-
based on the Task03Content style so the new style inherits all of the properties of the Task03Content style
and we can modify some of them for our style purposes
- using the same 12 point serif font used for Task03Content
- indententation from left 4 inches, but no special first line indentation
- style for the following paragraph Task03Content
This will be a style created for use in this document.
We will do the same create style action here.
Modify an existing style (not text formatting)
Style formatting is akin to changing a style definition in a stylesheet;
Text formatting is akin to doing an inline style declaration on a particular object.

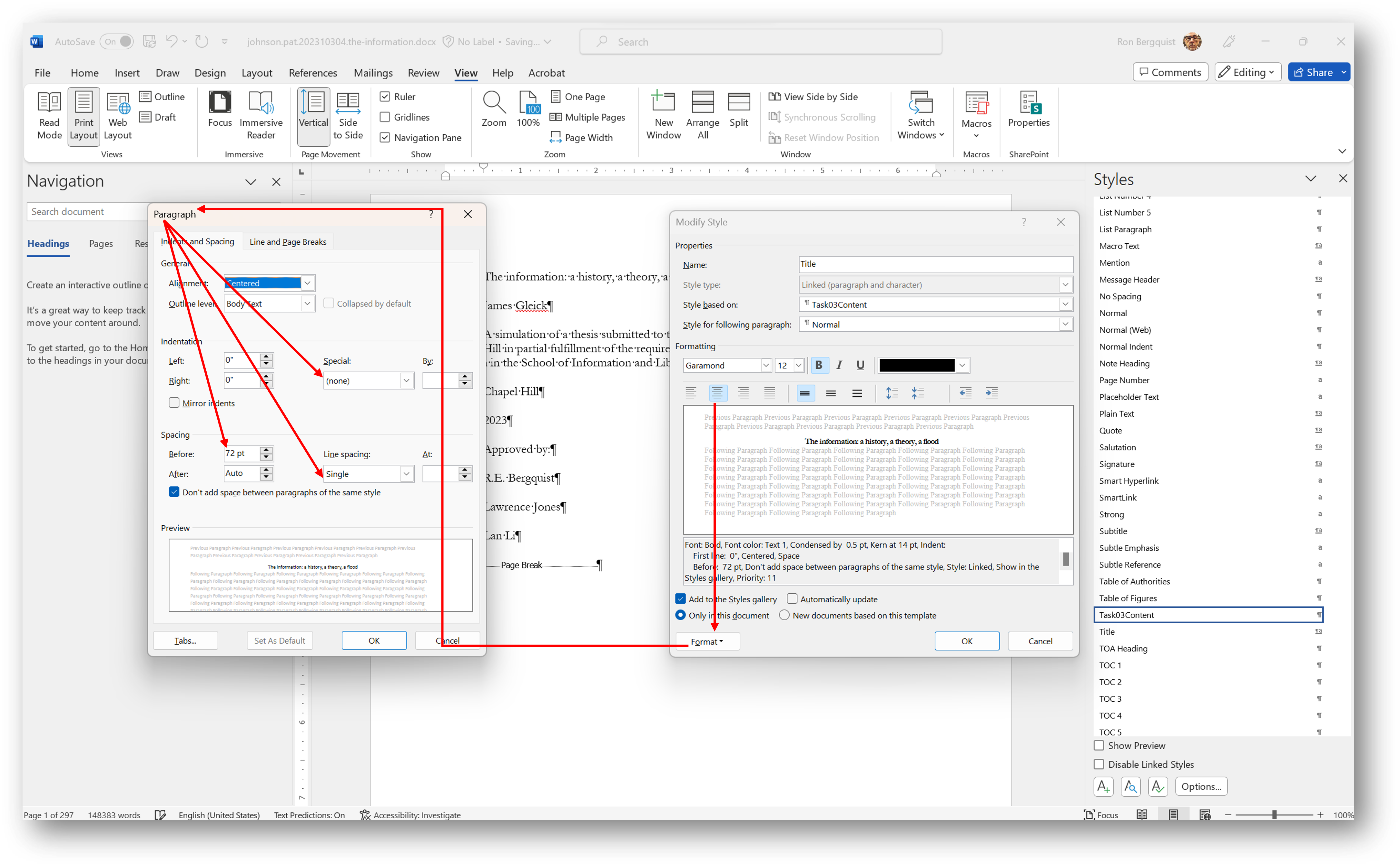

Here we want to modify the Title style
-
based on the Task03Content style so the new style inherits all of the properties of the Task03Content style
But we need to pay attention here because we have inherited all the properties of Task03Content,
but some of the properties may need adjustment to be appropriate for the style we are modifying
- using the same 12 point font you used for Task03Content
- black color
- center alignment
- no special first line indentation
- paragraph spacing before of 72 points
We are using these specifications because
the UNC Graduate School
Thesis and Dissertation Guide
specificies their use.
72 points on this page places the title two inches below the top of the page.
Modify the Subtitle style
-
based on the Task03Content style so the new style inherits all of the properties of the Task03Content style
- using the same 12 point font you used for Task03Content
- center alignment
- no special first line indentation
- black color
- paragraph spacing before of 54 points
- paragraph spacing after of 0 points
- single line spacing
The spacing puts objects formatted in the subtitle style one inch below the prior object (in this case, the title).

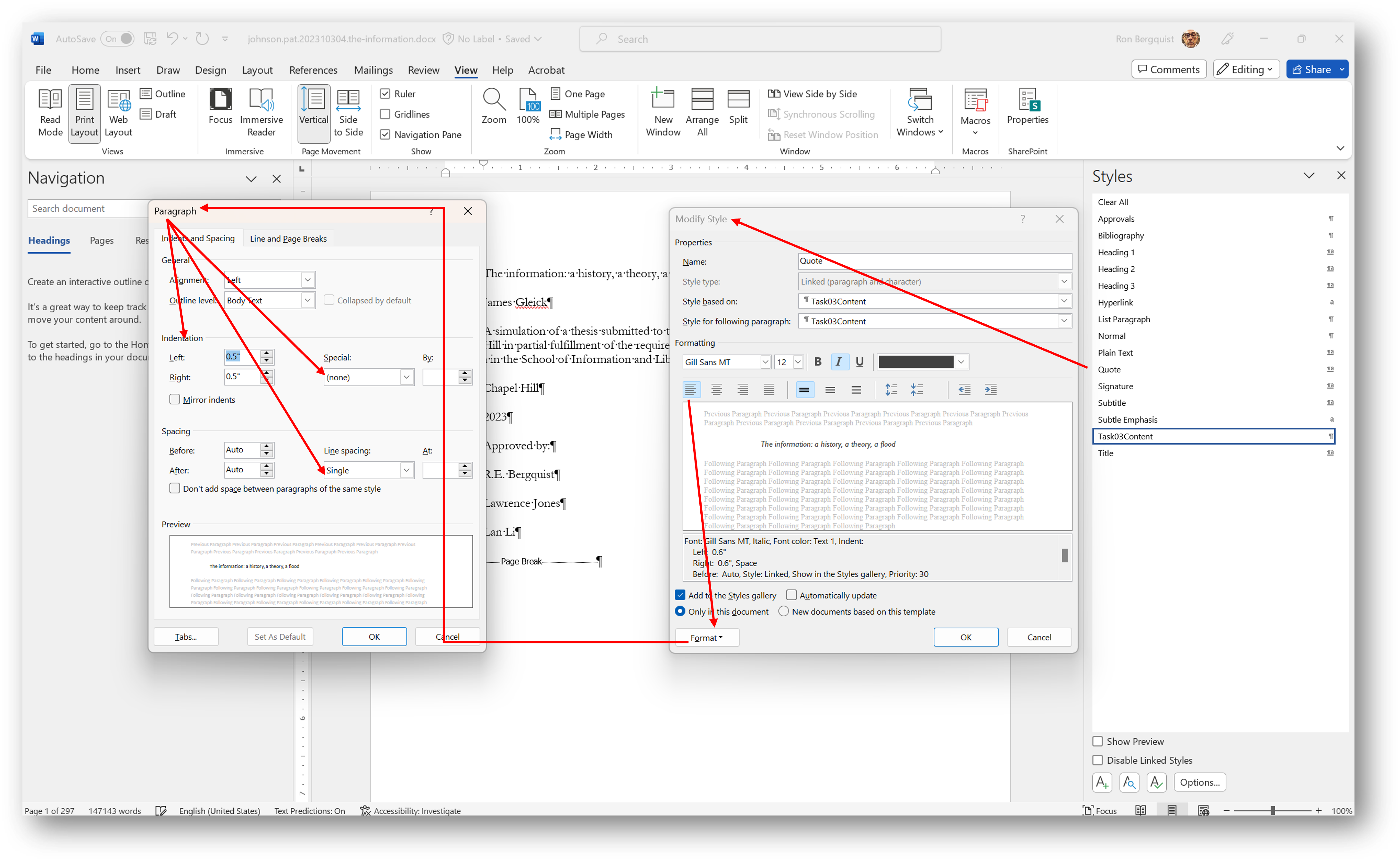

Next, we want to modify the Quote style
-
based on the Task03Content style so the new style inherits all of the properties of the Task03Content style
- with a 12 point sans-serif font
- alignment left
- indent .5 before and after
- auto spacing before and after
- single line spacing
- no first line indentation
We are using these specifications because
the UNC Graduate School
Thesis and Dissertation Guide
specificies their use.
They want consistent indentation for quotes and since we use a .5 inch first line indentation,
we use a .5 inch block indent for quotes.
We will choose to use
Gill Sans MT
as our font choice.
Gill Sans is a humanistic sans serif family that, while is considered by many to be quintessentially British in tone and concept,
has been used in virtually every country and in nearly every application imaginable.
Gill Sans has reached this level of near-ubiquity for one simple—and very good—reason:
it is an exceptionally distinctive design with a potential range of use that is almost limitless.
... Gill Sans was designed by Eric Gill: a versatile, brilliant, and prolifically successful designer of the early part of the last century.
One of the main reasons for the enduring success of his namesake design is that it is based on Roman character shapes and proportions,
making it unlike virtually any other sans serif out there.
Gill also worked his own warmth and humanity into his design, resulting in a typeface in which each weight retains a distinct personality of its own.
MyFonts.com

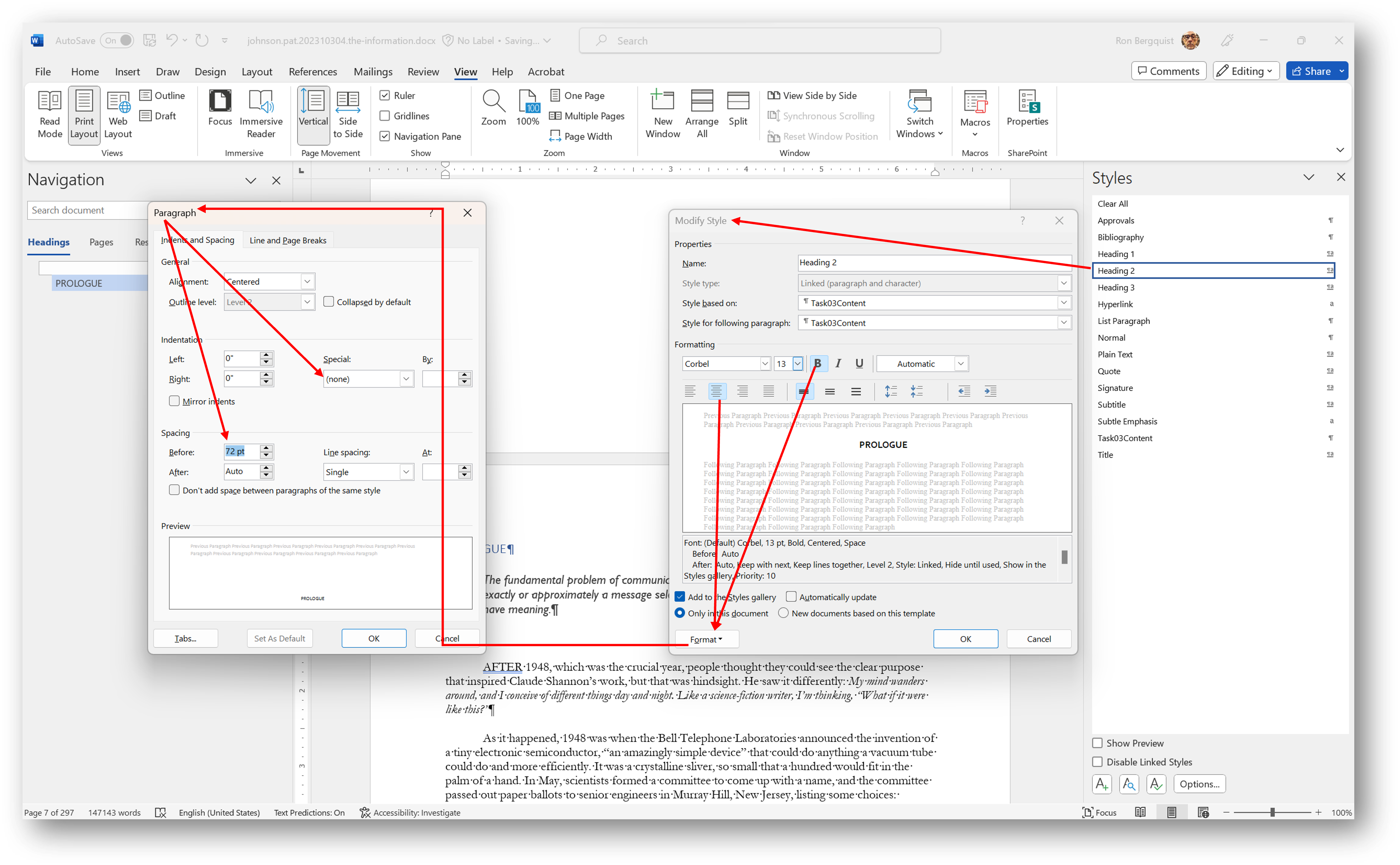

Now, modify the Heading 2 style
- use any font you prefer
- color black
- bold
- center alignment
- no first line indentation
- paragraph spacing before of 72 points
We are using these specifications because
the UNC Graduate School Thesis and Dissertation Guide
specifies that the title of each chapter will be located two inches below the top edge of the page.
With this style adjustment, we will be able to start each chapter in the same manner.
Modify the Header style
- color black
- center alignment
We want the headers to be consistent in color and alignment.
We have no headers yet, but this style will be applied when we do.
Modify the List Paragraph style
- so that it is based on Task03Content
- with no first line indentation
There are segments already formatted in this style,
and this change will make them look like regular paragraphs,
though without the first line indentation of each Task03Content paragraph
Modify the Signature style
- so that it aligns to the right.
There are segments already formatted in this style,
and this change will align them to the very right edge of the printed area.
Modify the Bibliography style
- so that it is based on Task03Content
- with a hanging first line indentation
- and single line spacing
There are segments already formatted in this style,
and this change will display them with a
hanging indent.
We are using these specifications because
the UNC Graduate School Thesis and Dissertation Guide
tells us to
follow a style manual or professional journal that is used for formatting publications and citations in your discipline.
We are assuming we will use the the APA style bibliography.

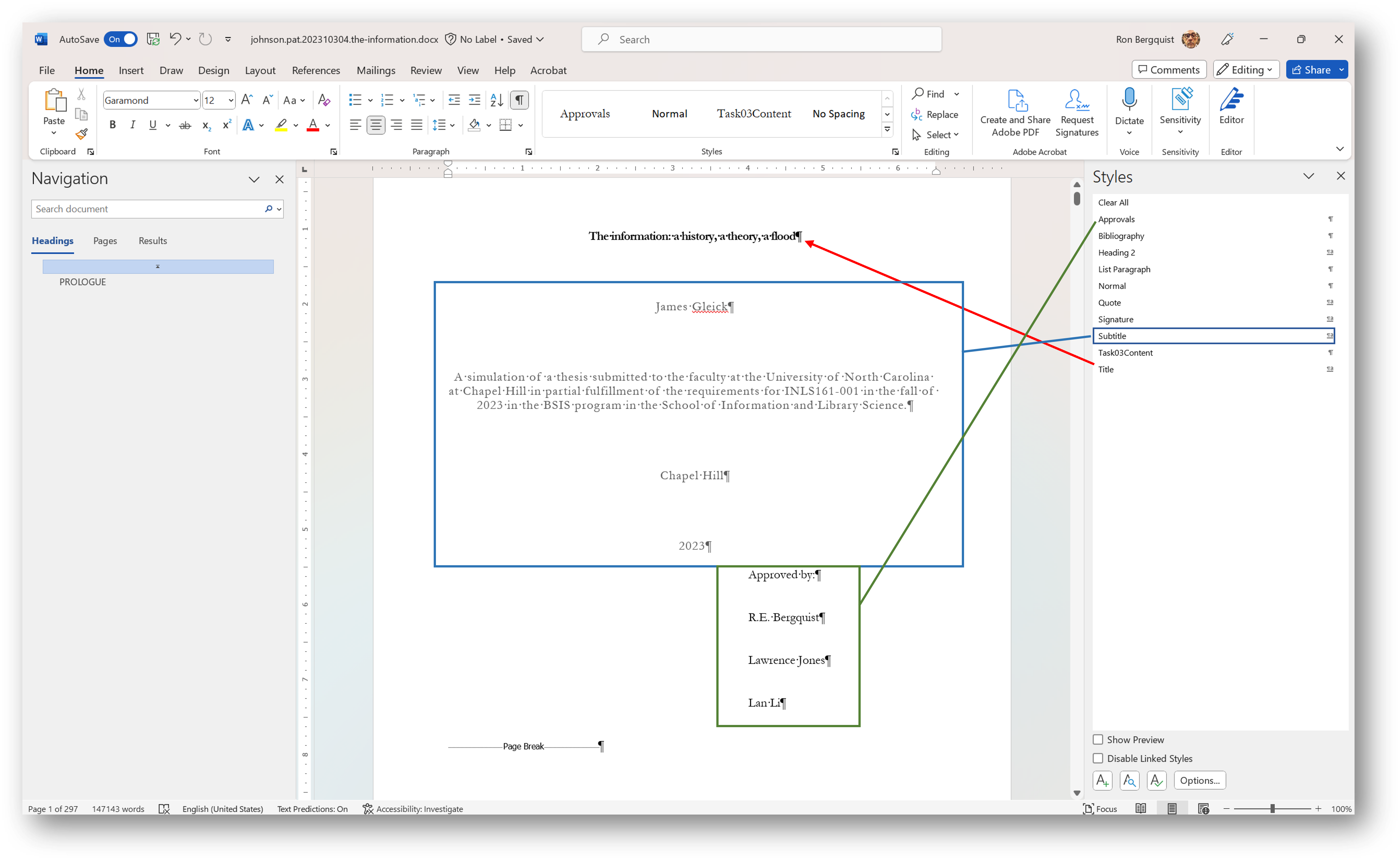

Apply different styles to different parts of the document
Start first on the title page of the document.
-
On the first page of the document, apply the Title style
to the words The information: a history, a theory, a flood
-
Apply the modified Subtitle style
to all the words from James Gleick to 2025
(the screenshot shows 2023, but the document says 2025)
-
Apply the modified Approvals style
to all the words from Approved by: to Kenneth Gyan
Apply a Heading 2 style to the words
- CONTENTS
- PROLOGUE
- 1 | DRUMS THAT TALK and all the chapter numbers and names to follow through 15 | NEW NEWS EVERY DAY
- EPILOGUE
- Acknowledgments
- Bibliography
- Index
The Table of Contents tool will find each instance of a Heading 2 for the Table of Contents we will create later.
Text formatting (not STYLE formatting)
Style formatting is akin to changing a style definition in a stylesheet;
Text formatting is akin to doing an inline style declaration on a particular object.

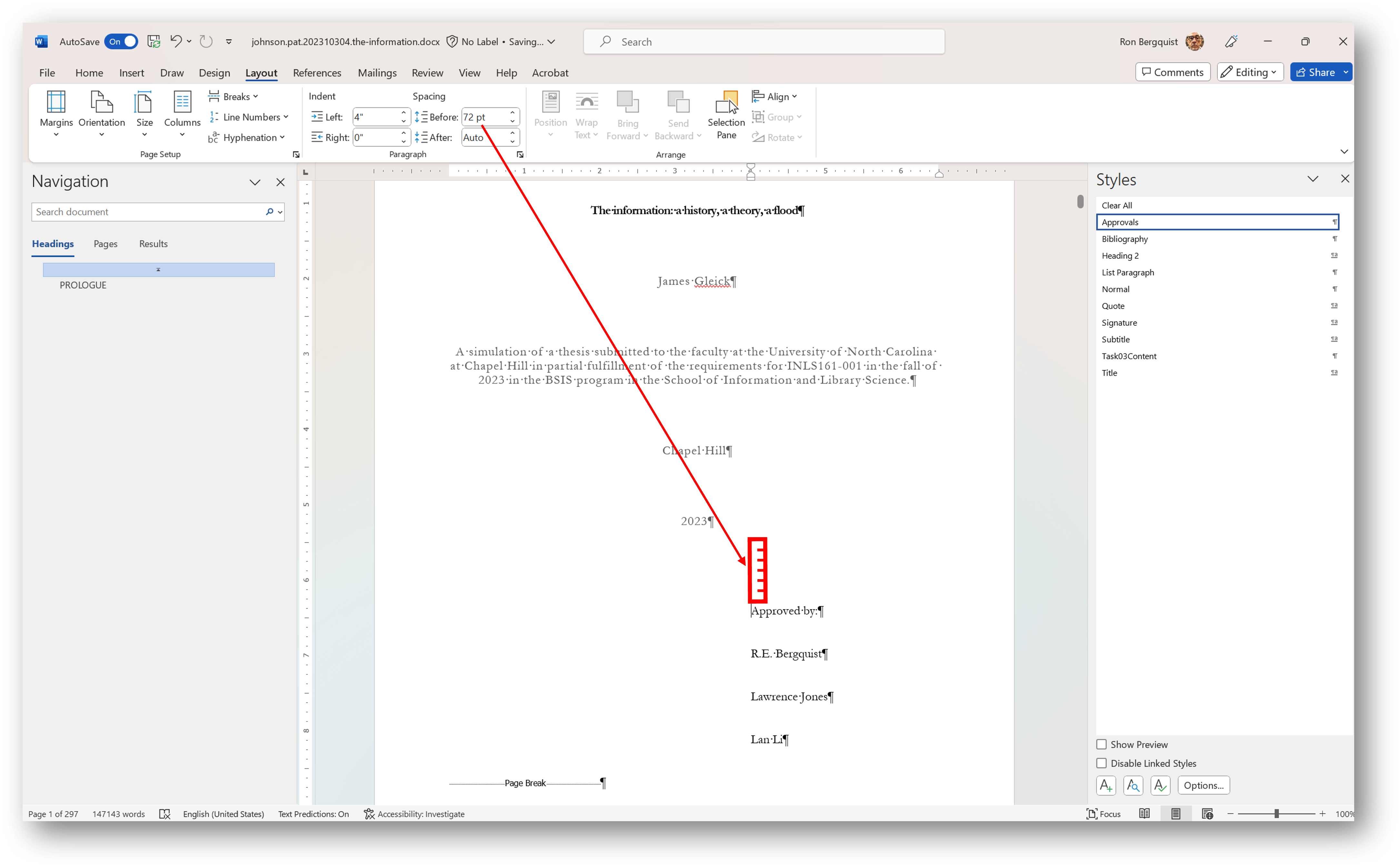

Modify the line reading
Approved by on the title page
- to have a spacing before of 72 pts
72 points on this line places the line two inches below the line above it.
We need to ensure the copyright page follows the Thesis and Dissertation Guide instructions.
Find the text that reads 2011
(followed by James Gleick and ALL RIGHTS RESERVED).
-
The guidance says the last line of the copyright should be centered 2″ above the bottom of the page.
Since the footer takes the bottom inch of the page, the last line ("ALL RIGHTS RESERVED") should be one inch above the footer.
To make this happen we will ensure the spacing before the copyright date ("2011") places the copyright in the correct location.
-

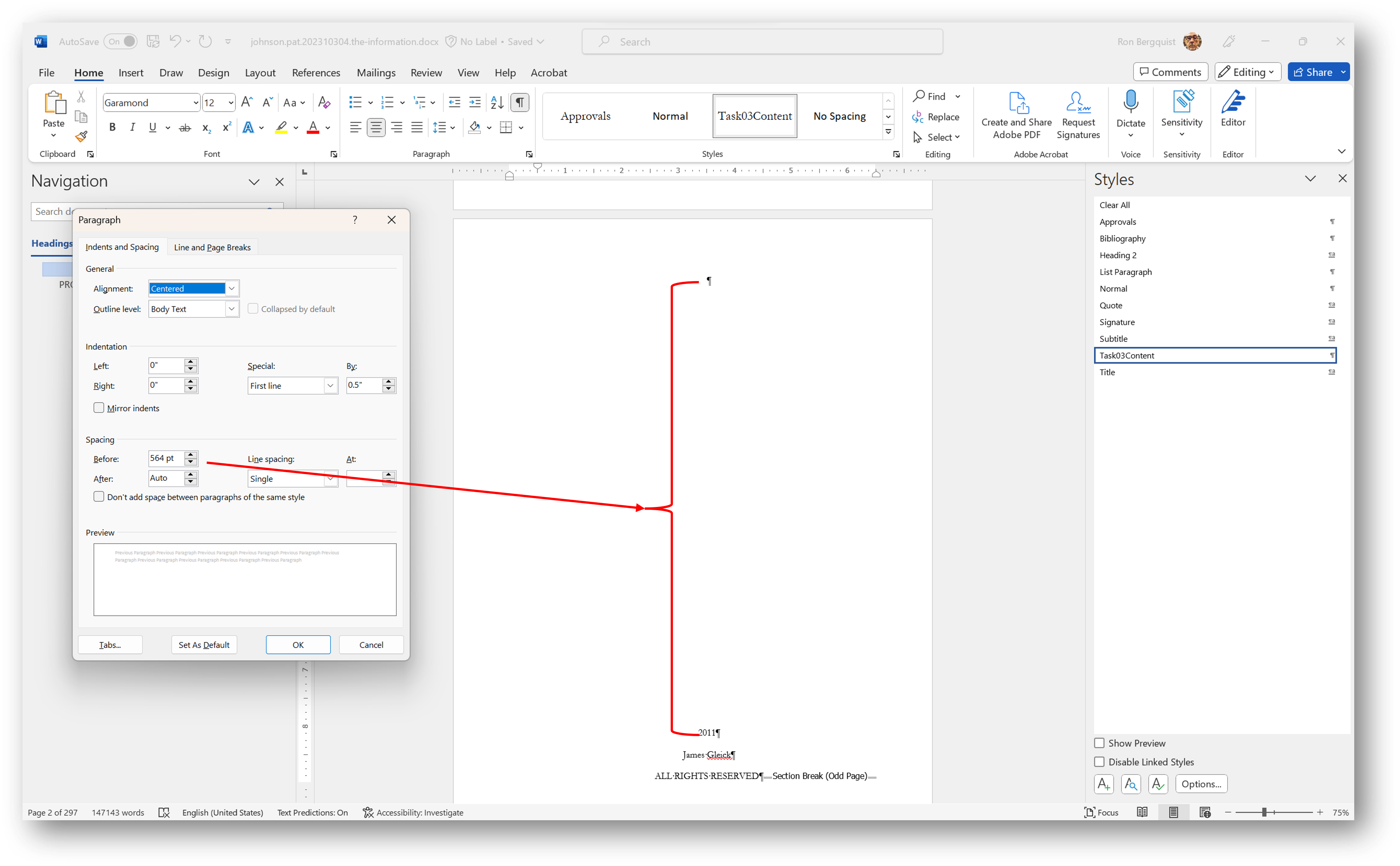

Enter a blank paragraph immediately before 2011
-
using the paragraph ribbon, modify the line paragraph containing 2011 to have 504 pts before
-
Then center all three lines center, using the paragraph ribbon.
This provides us the spacing to have the copyright at the bottom of page 2.
Note that 504 pts is the correct setting for text using the Garamand font.
Other serif fonts
may be slight bigger than Garamond,
so you may need to adjust the spacing before "2011" to get the placement right.

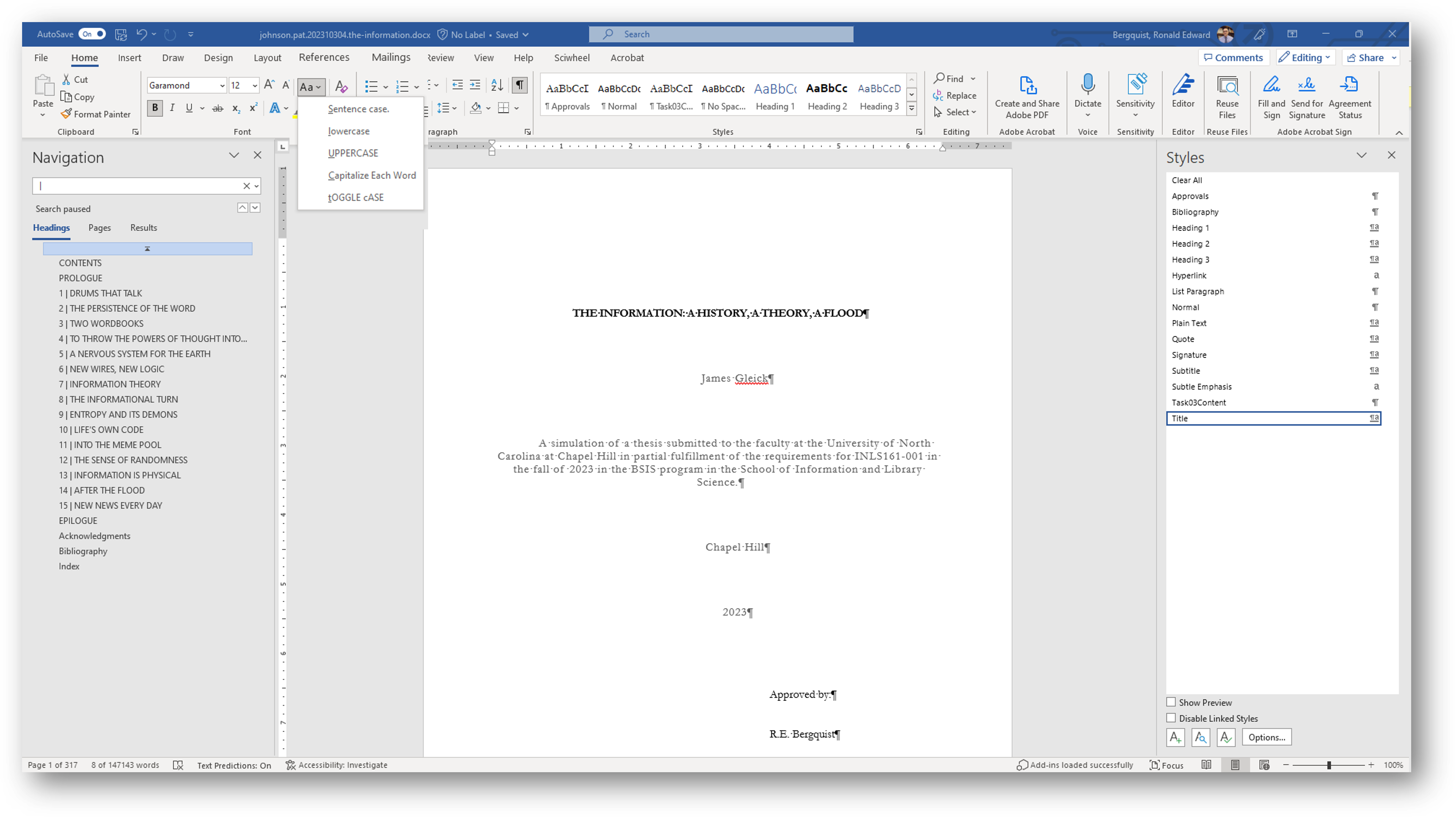

Do an inline style modification of the title.
After looking once again at our title,
it doesn't stand out enough for our taste.
We will modify this instance of the title style so it will stand out by using ALL CAPS and bold.
This modification will meet the standards in
the UNC Graduate School
Thesis and Dissertation Guide.
